40945 - Manufactured Sand

Knife River – South Dakota Product #40945
SD Cover Aggregate Type 2A
ASTM C33 Size #8

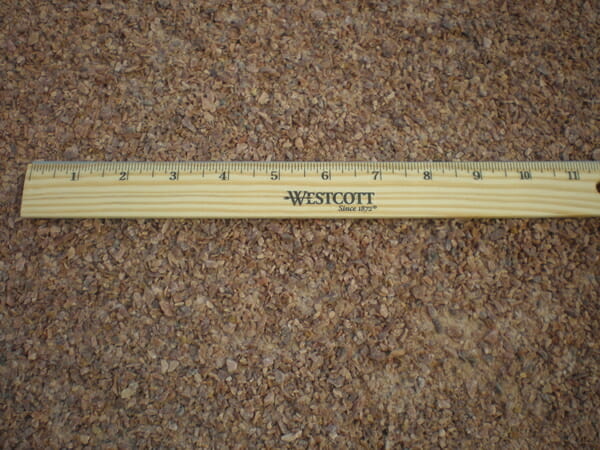

Description

Color: Tifton Pink (pink, light red, light purple)
Shape: Angular/Cubical
Size: US Sieve #8 to #200
Weight: Approx. 1.4 tons per loose cubic yard
Source: Sioux Falls Quarry, Sioux Falls SD
Available at: Sioux Falls Quarry, Yankton Sand & Gravel

Applications

  • Asphalt Concrete
  • Surface treatment for roadways/parking lots/driveways
  • De-icing material
  • Bedding material
  • Fill material
  • Blotting sand for prime coat
  • Retaining wall base
  • Base for paving bricks on patios

Mechanical Analysis Data

Sieve 2015 % average passing
2″ 100
1.5″ 100
1″ 100
3/4″ 100
5/8″ 100
1/2″ 100
3/8″ 100
#4 100
#8 95
#10
#16 70
#30 52
#40 44
#50 36
#100 15
#200 3.9

Physical Properties

Result ASTM C33 Fine Aggregate

Bulk Specific Gravity

(ASTM C127) + #4

2.63 N/A

Absorption (%)

(ASTM C127) + #4

0.4% N/A

Sodium Soundness Loss

(SD 220, ASTM C 88) + #4

0.6% 12% Max
Loose wt. (pcf) 95 N/A

LA Abrasion Loss

(AASHTO T 96, ASTM C 131) Grading B

19% 50% Max

Lightweight Particles (coal & lignite)

(Sp. Gr. Under 1.95, ASTM: C 123)

0.0% 0.5% Max

* Loose wt. determined by (SD 205)

(above information is subject to change but will still be within specification range)
